SBM 500 Stationary Beveling Machine

The Steelmax SBM 500 is a robust and efficient solution for beveling and deburring steel plate, angle, square/rectangular tubing and pipe.  With its high-speed rotary milling head and variable auto feed, the SBM 500 produces accurately milled weld preparations, improves welding efficiency and reduces costs.  Machined bevel angles are accurate and consistent, making plate and root gap fit-up extremely precise and easy.  Accurate weld preparation reduces over welding, defect repair, production time, significantly reducing production costs.

FEATURES

  • Powerful 7,500 Watt electric motor for continuous operation
  • Variable auto-feed to bevel both ferrous and non-ferrous materials
  • Continuously adjustable bevel angle from 15 to 60 degrees
  • Simple depth of cut adjustment
  • High-speed rotary milling head with 7 replaceable carbide inserts produces a clean, milled surface free of thermal distortion with no heat affected zone
  • Multiple cutting insert designs for optimal performance on different materials
  • Versatile table top operation permits hand feeding of small plates, square/rectangular tubing, pipe, angle iron and round stock
  • Optional table extensions accommodate longer material
  • Produces bevel widths up to 1-3/16” (30 mm)
  • Plate thickness up to 4” (100 mm)
SKU: SM-SBM500 Categories: ,
SBM 20 Technical Specifications
Part NumberSM-SBM20
Bevel Angle30 to 60 degree
Max Bevel Width1-3/16″(30 mm) at 30° angle

11/16″(18 mm) at 45° angle

5/8”(15 mm) at 60° angle
Max Plate Length 60″
(Standard)
60″ (1500 mm)
Max Plate Length
(Optional Extension Table)
120″ (3000 mm)
Plate Width1-9/16″ to 24″ (40-600 mm)
Plate Thickness1/8″ to 4″ (3-100 mm)
Round Stock1-3/16″ to 6-5/16″ (30-160 mm)
Adjustable working angle15 – 60° variable
Square/Rectangular Tubing4″ x 4” (100 x100 mm)
Minimum Angle Profile2″ x 2″ (50 mm x 50 mm)
Recommended Max Bevel

Width Cut Per Pass

-Carbon Steel/Aluminum

-Stainless Steel



1/4″ (6 mm)

5/32″ (4 mm)
Recommended Max Feed Speed

-Carbon Steel

-Aluminum

-Stainless Steel


30 in/min. (.8 meters/min.)

60 in/min. (1.5 meters/min.)

15 in/min. (.4 meters/min.)
Power480 V, 3 Phases, 50-60 Hz

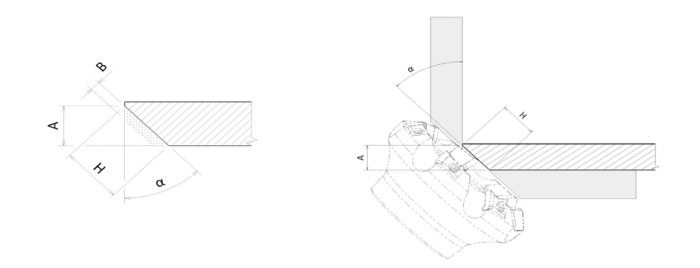

SBM20-Beveling-Machine-Brochure-diagram

aH maxA max
30°1-3/16" (30 mm)1.0" (25 mm)
35°1.0" (26 mm)13/16" (21 mm)
40°3/4" (23 mm)11/16" (17.5 mm)
45°13/16" (21 mm)9/16" (14.5 mm)
50°3/4" (19 mm)1/2" (12 mm)
55°11/16" (17.5 mm)3/8" (10 mm)
60°5/8" (16 mm)5/16" (8 mm)
 B max rpms in/min (m/min)
Steel1/4" (6 mm)96031-1/2" (0.8 m)
Stainless3/16" (4 mm)55015-3/4" (0.4 m)
Aluminum1/4" (6 mm)120059" (1.5 m)
